Ultrasonic Rod Transducer
MECS, opening up a new future.
Specification
| Model | MC-2020RT | |
|---|---|---|
| Frequency | 20kHz | |
| Max Output | 2000 Watt | |
| Main Power | AC 220V ( Single Phase ) / 50-60 Hz | |
| Ultrasonic Generator | Size | 285(W) * 475(L) * 135(H) mm |
| Weight | 10kg | |
| Feature | Ultrasonic Intensity adjustable / Full digital control | |
| Rod Transducer Size | Length : 890 mm Diameter: 50 mm |
|
Features
| Excellent service life due to a solid radiating element made of a special Titanium Alloy | ||
| Excellent ultrasound cleaning effect due to extremely homogeneous sound field without gaps or dips | ||
| Ideal for vacuum and overpressure environments (resistant to vacuum or overpressure, up to a maximum of 10 bar). | ||
| For the strictest demands and toughest applications - even in continuous operation at temperatures of up to 95ºC. | ||
| Extremely low space requirement | ||

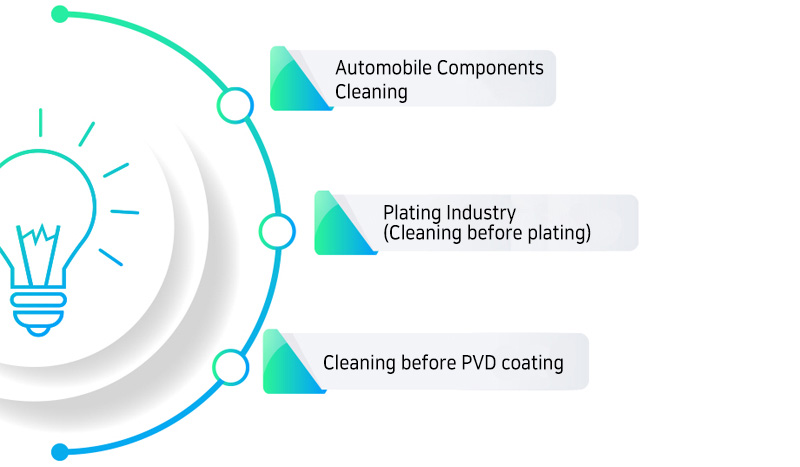

Applications
Video
