Ultrasonic Sieving System
High-Efficiency Classification · Reduced Screen Blinding · Enhanced Productivity
MECSTECH’s ultrasonic sieving system uniformly transmits fine ultrasonic vibrations across the entire screen surface, significantly reducing friction between the mesh and powder materials and effectively minimizing screen blinding.
The system is available in two configurations: T-Type, with the transducer integrated inside the screen frame, and A-Type, with the transducer mounted externally—allowing flexible adaptation to various equipment structures and production environments.
Key Features
01

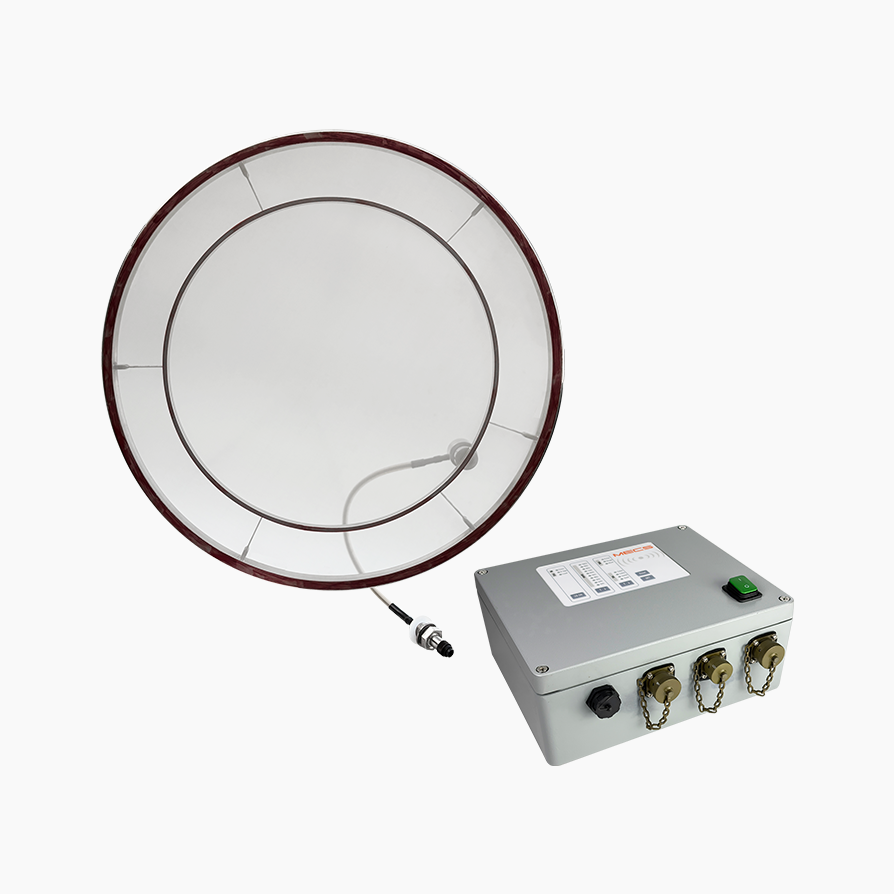

T-Type — Internal transducer design minimizes vibration loss and ensures high-output stability
02

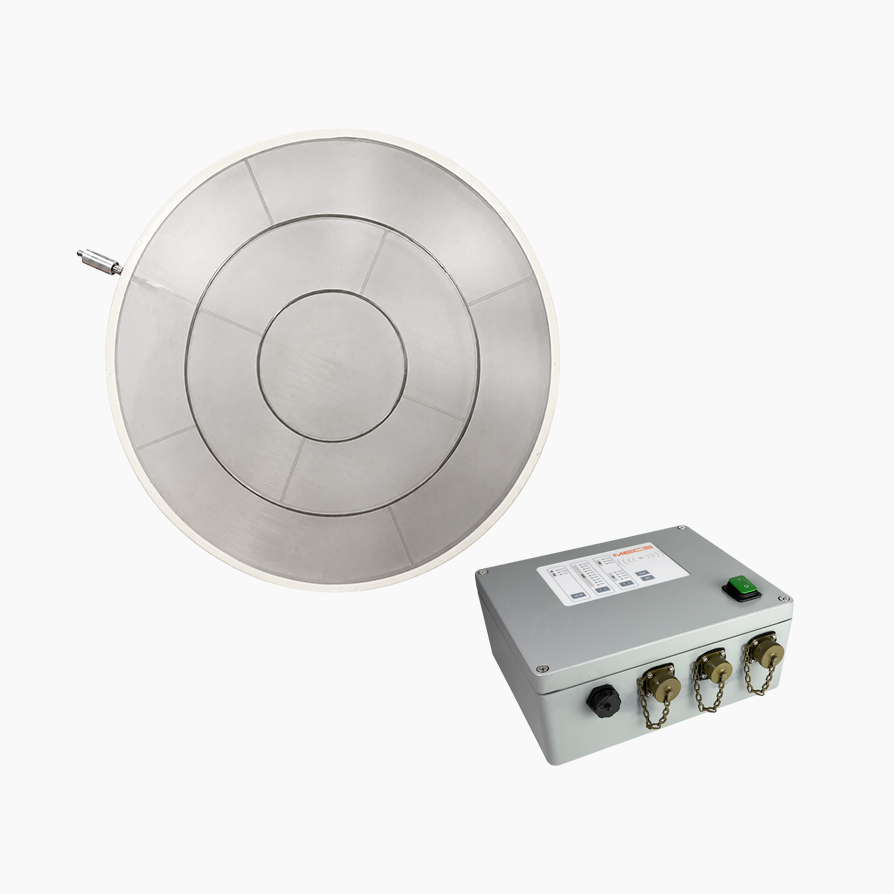

A-Type — External transducer mounting enables easy maintenance and compatibility with various screen frames
03
Uniform distribution of ultrasonic micro-vibration across the entire screen surface to reduce powder-to-mesh friction
04
Significantly reduced screen clogging for consistent particle size distribution and high throughput
05
No need for additional vibration devices or auxiliary equipment, ensuring a clean process with no foreign contamination
06
Higher processing speed, lower operating costs, and simplified maintenance compared to conventional screening methods
07
