Ultrasonic Leather Cutting

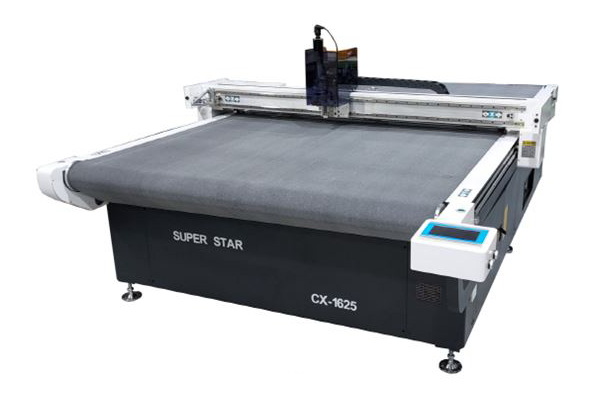

The Ultrasonic Leather Cutting Machine is capable of automatically cutting leather or synthetic leather according to the provided design file in DXF format. Once the drawing file, detailing the desired shape to be cut, is input into the equipment, it can execute the cutting process accordingly.
The Ultrasonic Leather Cutting Machine operates by generating rapid micro-vibrations at a rate of 15,000 to 20,000 times per second (15kHz-20kHz/sec) on the blade. This minimizes the cutting friction resistance on leather, ensuring a clean cut surface. Moreover, it is designed to minimize various defects that may arise during manual operations, thereby maximizing productivity.
Ultrasonic Leather Cutting



Specification

Model MC-2020L ( Ultrasonic Leather Cutting )
Size 2170(W) x 3730(L) x 1310(H) mm
Operation Touch Screen and Computer
Power Three Phases 380 V or Three Phases 220 V / 60Hz
Power Consumption 12 kWatt
Air compressor 0.5 Mpa (Min)
Operation Speed 200 ~ 800 mm/s
Frequency 15kHz or 20kHz
