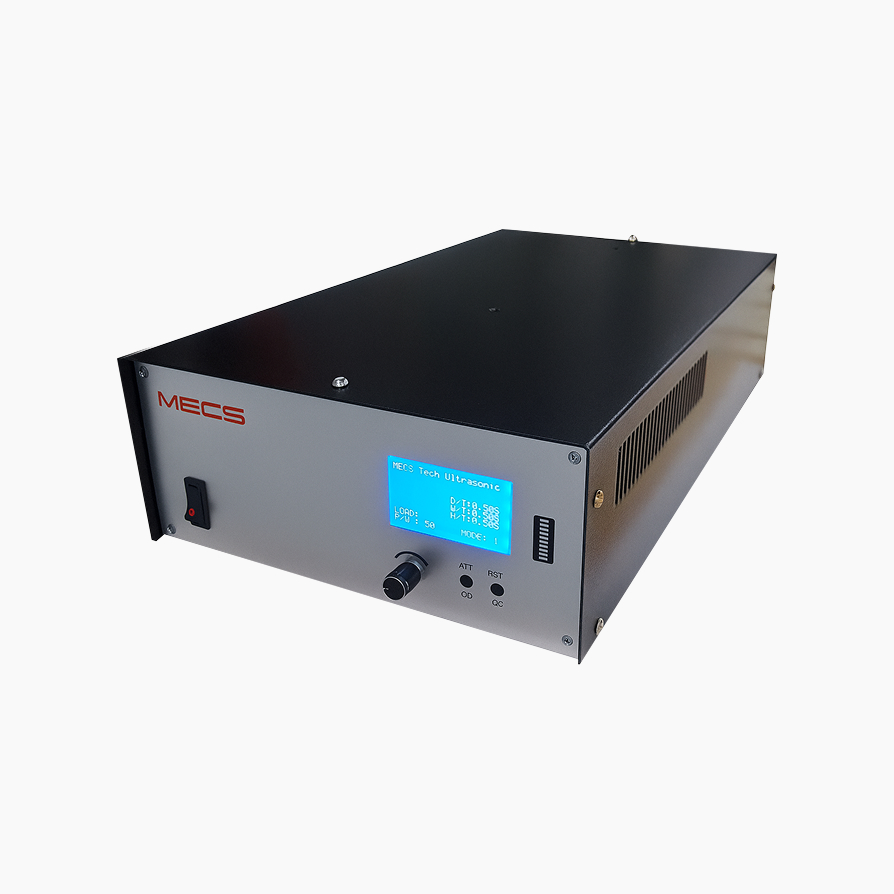

Ultrasonic Generator
Ultrasonic Generator

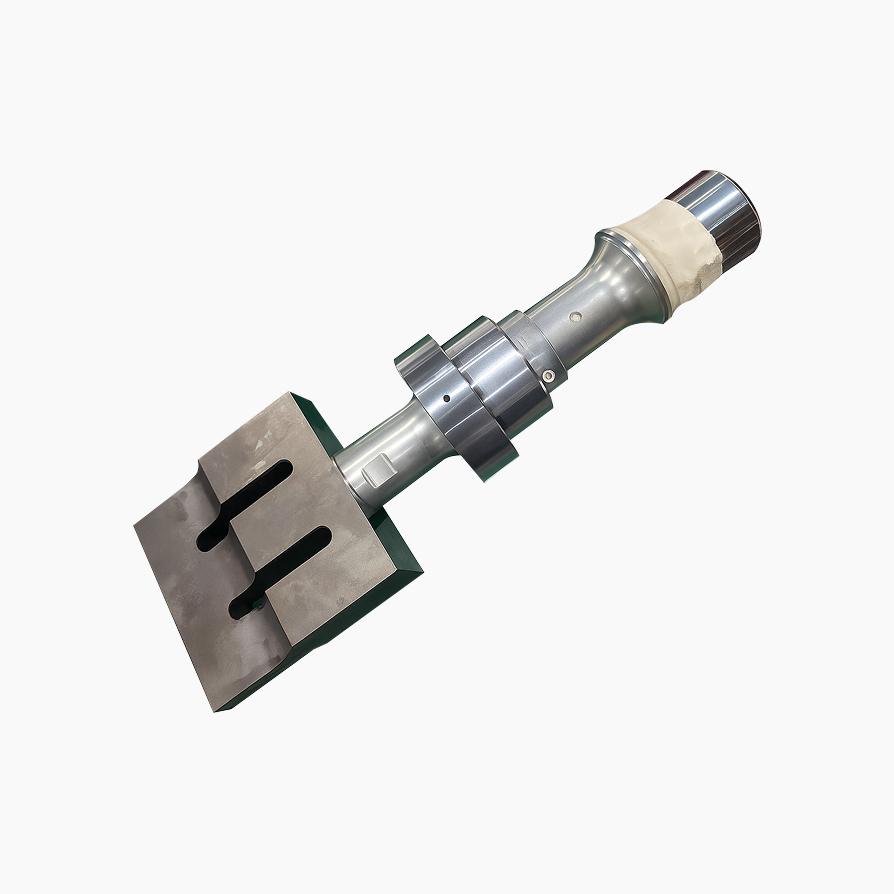

Ultrasonic Transducer
Ultrasonic Transducer

Ultrasonic Welding Unit

Precision Control, High-Efficiency Vibration, Ready for Automated Production Lines

MECSTECH’s ultrasonic plastic welding unit is a modular system composed of an ultrasonic amplifier, oscillator, multi-purpose head, and vibration unit.

It is designed for easy integration into automated or semi-automated production lines as a stand-alone unit, making it ideal for customized system configurations.

This unit serves as a core component in various ultrasonic applications such as multi-staking systems, insert welding lines, and continuous sealing machines, delivering high productivity and reliability through stable ultrasonic output and precise control.

Inquiry & Quote

Ultrasonic Amplifier Features

01

Fully digital control architecture for precise and stable output regulation

02

Built-in timer functions (delay, welding, holding time) for detailed process settings

03

Automatic frequency tuning system with ultra-fast tuning within 10 ms

30kHz: ±1kHz / 20kHz: ±700Hz, with automatic re-tuning when vibration units are changed

04

Digital amplitude control within the range of 80–100%

05

Enhanced stability through overload, overcurrent, voltage detection, and phase monitoring

06

Consistent amplitude control ensures high welding efficiency and uniform quality

07

RS-232C / RS-485 ultrasonic data communication support (optional)

Ultrasonic Oscillator Features

01

Cost-effective amplifier structure suitable for automation equipment and special-purpose machines without a separate control unit

02

Equipped with AVR, full auto-tuning, and amplitude control to ensure stable production quality

03

Comprehensive overload protection circuitry to minimize damage to the amplifier and vibration unit

04

Specifications: 30kHz / 1,000W, 20kHz / 2,000W, 15kHz / 3,000W

05

Supports external signal interfacing for ultrasonic activation timing control and overload signal output

Multi-Purpose Head Features

01

Pneumatic cylinder (Ø63 mm) capable of delivering up to 200 kg of pressure

02

Easy installation on automatic and semi-automatic equipment

03

Built-in internal trigger mechanism and precise stroke adjustment

04

LM guide structure enables high-precision linear motion and excellent repeatability

Specifications

Model No.
MT-2515 / MT-2020 / MT-1030
Frequency
15 / 20 / 30 kHz
Max Output
2500 / 2000 / 1000 W
Line voltage
AC 220 V (Single phase) / 50-60 Hz
Ultrasonic Generator
Size
Weight
285(W)x530(L)x134(H)mm
10 kg
Horn Material
Aluminum / Titanium
